Sort：4CH

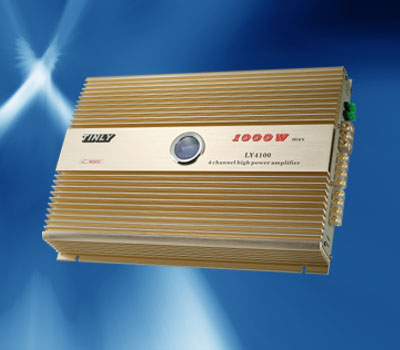

Item No : LY4100
Name :
Detail : Features:
●　　Mosfet PWM power supply
●　　Stable power supply and voltage
●　　Bridgeable into dual or tri-mode operation
●　　Low / High Pass Filter
●　　Overload,thermal,short ciruit protection
●　　Decibelmeter indicator circuit
Specifications
1、RMS Power Output
　　   @ 4 Ohm：70W×4
　　   @ 2 Ohm：100W×4
　　   @Bridge (4 Ohm)：180W×2　　
2、Signal to Noise Ratio：100dB
3、Frequency Response：10Hz-50KHz
4、Total Harmonic Distortion：≤0.05%
5、Damping Factor：＞120
6、Dimension(L×W×H)：405×275×70mm
