Sort��4CH

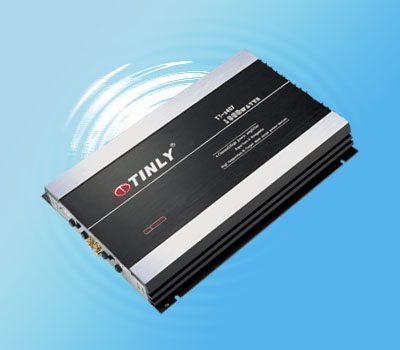

Item No : TL-X407
Name :
Detail : Features:
¢  Class A Technology Mosfet PWM Power Supply
¢  Stable into 2 ohms
¢  Bridgeable operation
¢  Soft start&Muting
¢  Short circuit&thermal protection
¢  Gold-plated Audio Input Terminals
¢   Bass Boost
¢  Power indicator

Specifications:
1、RMS power output:
     @ 4 ohms: 60W x 4
     @ 2 ohms: 100W x 4
     @ bridged: 200W x2
2、Signal to noise ratio: 90dB
3、Frequency response: 10Hz-40kHz
4、Total harmonic distortion: 0.05%
5、Damping factor: >120
6、Dimensions(LXWXH): 403 x 253 x 53mm
