所属类别：2路

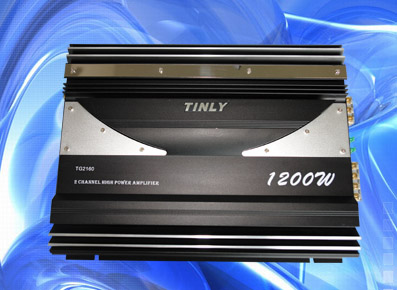

产品货号：TG2160
产品名称：
产品简介：MOSFET PWM power supply.
Stable into 2 ohms,Bridgeable operation
Soft start&muting.
Overload, Thermal, short circuit protection.
Gold plated RCA&power, speaker terminal.
Hi/Low pass filter
External remote gain control(chooser)
Audio terminal start
(Voltage can be lower at 6 V for REM start)
Technical Parameter:
4 Ohm RMS output power:2×120W
2 Ohm RMS output power:2×220W
4 Ohm Bridgeable output power:1×400W
Frequency response：10Hz-40KHz
Signal to noise ratio: ≥90dB
Input sensitivity:100mv-5V
Stereo separate:80dB
THD ：≤0.05%（1W，100Hz）
Damping Factor:≥120
Input impedance:≥20K Ohm
Fuse rating:25A×2
Dimension (L×W×H)  :345×260×60mm
